Description
| Specifications | |||||||||||||||||||
| DEVICE PRESENTATION | MODULE | MOUNTING BOX SIZE | 25MM | ||||||||||||||||
| SWITCH FUNCTION | DP | ACTUATING MEMBER | VERTICAL STRUCTURE | ||||||||||||||||
| NUMBER OF ROCKER | 1 | ENDURANCE | 5000 | ||||||||||||||||
| RATED CURRENT | 45A | ENCLOSURE MATERIAL | PC PANEL，OUTER FRAME,PRESSURE PLATE,IRON BRACKET(Q195)，BASE(PP) | ||||||||||||||||
| RATED VOLTAGE | 250V AC | CONTACT MATERIAL | BRASS,SILVER POINT | ||||||||||||||||
| FREQUENCY | 50/60 Hz | TERMINAL MATERIAL | IRON PLATED WITH BULE-WHITE ZINC | ||||||||||||||||

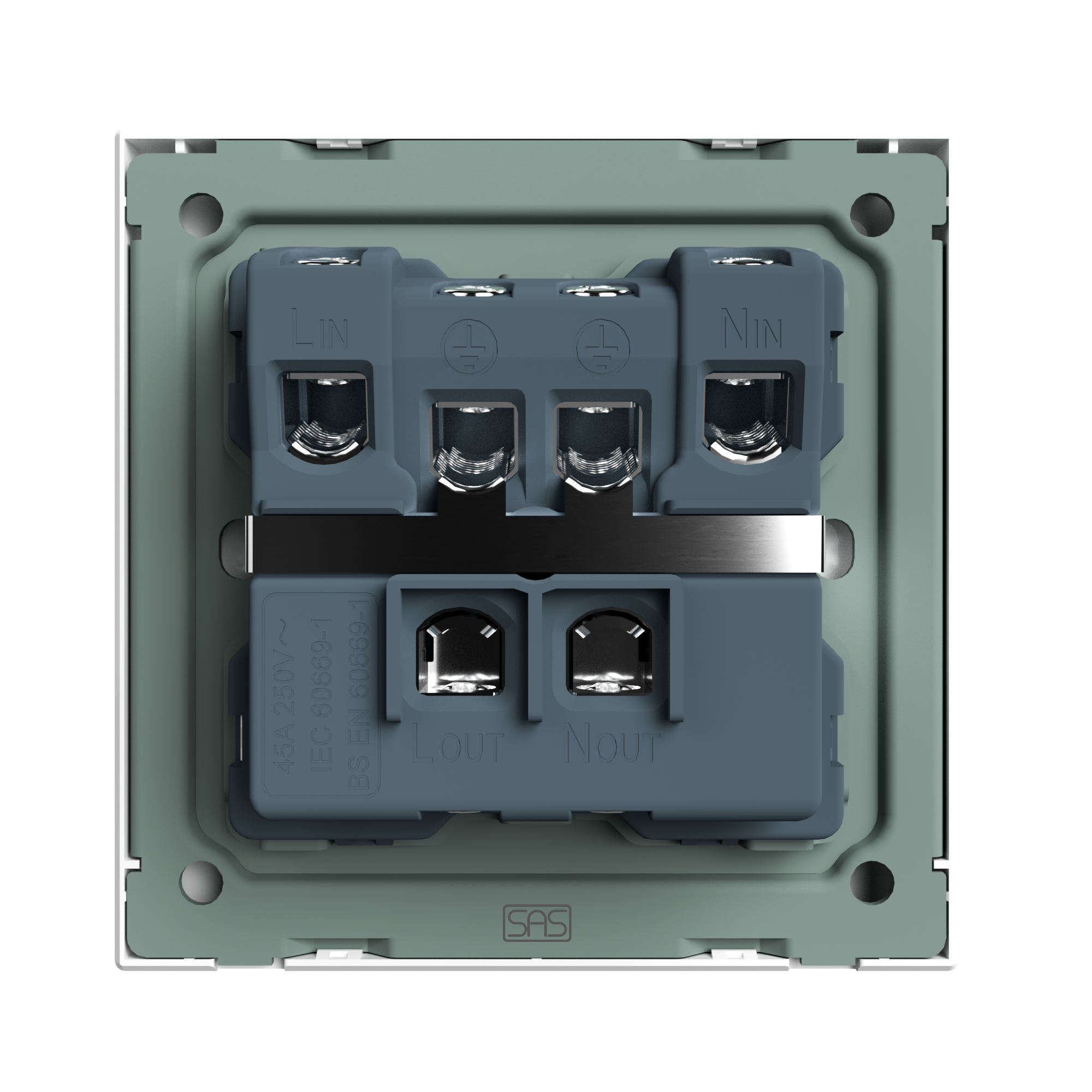

| PRODUCT DIMENSIONS | 86MM*86MM | TERMINAL IDENTIFIER | L | ||||||||||||||||
| ACCESSORIES PRODUCT | MOUNTING SCREWS 25 X M3.5 |
CONDUCTOR SIZE | 6~16MM² | ||||||||||||||||
| MOUNTING ARRANGEMENT | FLUSH MOUNTING | TERMINAL CAPACITY | 4X6MM²,1X10MM²,1X16MM²” | ||||||||||||||||
| FIXING CENTER | 60.3MM | TIGHTENING TORAUE | 0.6N.M | ||||||||||||||||
| AUXILARY FIXING OPTIONS | 2 CORNERS | SCREW SIZE | M6*9 | ||||||||||||||||
